523-T

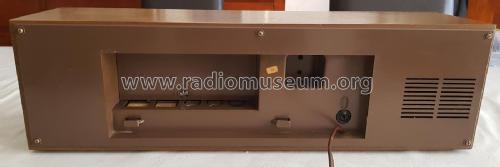

523-T; Europhon; Milano (ID = 2429414) Radio 523-T; Europhon; Milano (ID = 2429415) Radio
523-T; Europhon; Milano (ID = 2429416) Radio 523-T; Europhon; Milano (ID = 2429417) Radio
Use red slider bar for more.
523-T; Europhon; Milano (ID = 2429414) Radio
Europhon; Milano: 523-T [Radio] ID = 2429414 1400x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model 523-T, Europhon; Milano

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: 523-T - Europhon; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 155 x 150 mm / 20.1 x 6.1 x 5.9 inch
Notes

Schaltplan siehe Quelle WTR-571

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)

Model page created by Didier Tholomier. See "Data change" for further contributors.
