KT62

KT62; Europhon; Milano (ID = 981769) Radio
KT62; Europhon; Milano (ID = 1977986) Radio
Use red slider bar for more.
KT62; Europhon; Milano (ID = 1977986) Radio

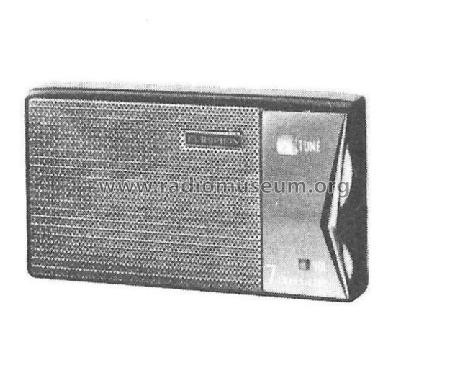

Europhon; Milano: KT62 [Radio] ID = 1977986 631x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model KT62, Europhon; Milano:
catalogo anie 1971-1972

Country:  Italy
Manufacturer / Brand:  Europhon; Milano
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: KT62 - Europhon; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 130 x 70 x 40 mm / 5.1 x 2.8 x 1.6 inch
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 10'000.00 ITL
Mentioned in Catalogo ANIE 1965-66

Model page created by Eduard Abfalterer. See "Data change" for further contributors.



All listed radios etc. from Europhon; Milano
Here you find 146 models, 112 with images and 47 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
