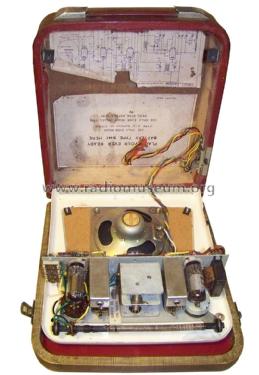

Sky Baby ; Ever Ready Co. GB (ID = 2145116) Radio Sky Baby ; Ever Ready Co. GB (ID = 2145117) Radio
Use red slider bar for more.
Sky Baby ; Ever Ready Co. GB (ID = 58381) Radio
Ever Ready Co. GB: Sky Baby [Radio] ID = 58381 392x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sky Baby Valve, Ever Ready Co. (GB) Ltd.; London:
From Keith Watt\'s Museum Collection at

Country:  Great Britain (UK)
Manufacturer / Brand:  Ever Ready Co. (GB) Ltd.; London
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Sky Baby [Valve] - Ever Ready Co. GB Ltd.; London
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9 x 9 x 4 inch / 229 x 229 x 102 mm
Notes

The Sky Baby receiver (Berec version: Ballerina) uses the same chassis as Sky Princess (Berec version: Calypso), similar to Sky Casket (but no AGC V2) and Berec Harlequin.

In contrast to these models, where the centre position of the wavechange switch serves as off switch, the Sky Baby uses a separate on/off switch operated by the lid.

A Ferrite Rod aerial replaces the loop antenna contained in the lid of earlier models. There is no slow motion drive for the tuning on this version of the chassis.

The usual metal panel / baffle was replaced by a plastic one that cracked easily. The later Sky Countess has a more resiliant cloth covered fibre board instead.

A PCB replaced the point to point chassis in the Sky Countess (Berec version: Wizard) and Sky Baronet (Berec version: Matador), which are otherwise similar designs of case and chassis.

This model and all the others listed use the Ever Ready B141 combo battery pack, balanced for 125mA LT and about 90V @ 9mA HT. It uses the same miniature 4 pin connection as the B114 pack which isn't compatible as it is for 250mA LT and 69V HT.

The Sky Baby model name was also used for a later transistor portable Sky Baby in 1965.

Net weight (2.2 lb = 1 kg) 7 lb (7 lb 0 oz) / 3.178 kg
Price in first year of sale 9.50 GBP
Collectors' prices
Source of data Radio And Television Servicing books (R&TVS)
Mentioned in Attaché Radios, Mark Johnson 2005, BVWS GB (Page 20 (but wrong price, or perhaps includes battery))
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1305 issued 15th June 1957)
