• Country
• Italy

• Manufacturer / Brand
• Fada Radio, Società meccanica La Precisa (LP); Napoli

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98582

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6D6 6A7 6D6 6D6 6B7 42 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1743 - Fada Radio, Società meccanica

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 560 x 950 x 410 mm / 22 x 37.4 x 16.1 inch

• Notes

• Guida Pratica AR III lo identifica (a differenza dalla pubblicità allegata) come mod 1743R. Stesso chassis del G1743, che è però il radiogrammofono. Indicatore sintonia a proiezione d'ombra

  Controllo di tono.Ingresso per giradischi.

• Price in first year of sale
• 1,900.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

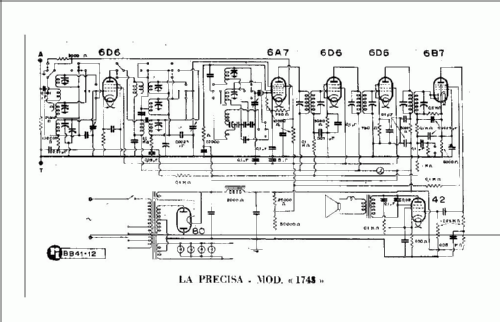

• -- Schematic

• Literature/Schematics (2)
• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
