Streamline 290 (290-C)

Streamline 290 ; Fada Radio & (ID = 354711) Radio
Streamline 290 ; Fada Radio & (ID = 706867) Radio Streamline 290 ; Fada Radio & (ID = 1964528) Radio
Streamline 290 ; Fada Radio & (ID = 1964529) Radio Streamline 290 ; Fada Radio & (ID = 1964531) Radio
Use red slider bar for more.

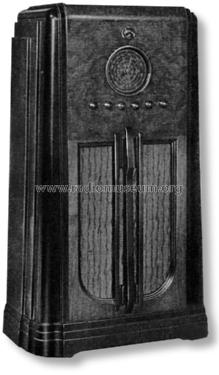

Streamline 290 ; Fada Radio & (ID = 706867) Radio
Fada Radio &: Streamline 290 [Radio] ID = 706867 441x753
Select picture or schematic to display from thumbnails on the right and click for download.
For model Streamline 290 (290-C), Fada Radio & Electric Co.; Long Island (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6K7 6A8 6K7 6Q7 6E5 or 6G5 6C5 6L6 6L6 5Z4
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Streamline 290 - Fada Radio & Electric Co.;
Material Wooden case
Shape Console with any shape - in general
Notes Three stage IF selectivity switch. Tuning eye. Push-pull audio amplifier.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (2) Cathedral & Tombstone Radios (page 109.)
