110 Fadalette Ch= RT

110 Fadalette Ch= RT; Fada Radio & (ID = 1655383) Radio 110 Fadalette Ch= RT; Fada Radio & (ID = 1655384) Radio
Use red slider bar for more.
110 Fadalette Ch= RT; Fada Radio & (ID = 1655383) Radio
Fada Radio &: 110 Fadalette Ch= RT [Radio] ID = 1655383 907x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 110 Fadalette Ch= RT, Fada Radio & Electric Co.; Long Island (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner

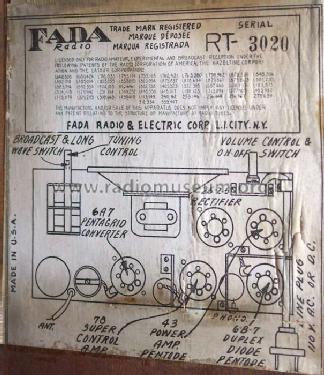

Valves / Tubes 5: 6A7 78 6B7 43 25Z5
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 110 Fadalette Ch= RT - Fada Radio & Electric Co.;
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 280 x 185 x 140 mm / 11 x 7.3 x 5.5 inch
Notes

The identification of this model is based on a picture shown on the site doctsf where it is called a "Fadalette 110". We are not certain if this information is accurate.

See also model 110 Super Fadalette with a slightly different cabinet.

Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Mentioned in Le grand livre de la TSF (Doctsf ref. 20468)

Model page created by Roberto Gabba. See "Data change" for further contributors.
