Four Tube Neutrodyne One Sixty 160-A

Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 349004) Radio

Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 453485) Radio
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 2508899) Radio Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 2508900) Radio
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 2508901) Radio Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775916) Radio
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775913) Radio Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775925) Radio
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775920) Radio Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775923) Radio
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775918) Radio Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 775926) Radio
Use red slider bar for more.
Four Tube Neutrodyne One Sixty 160-A; Fada Radio & (ID = 2508899) Radio

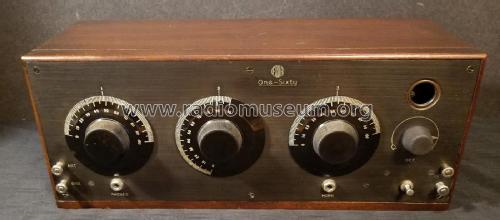

Fada Radio &: Four Tube Neutrodyne One Sixty 160-A [Radio] ID = 2508899 1400x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Four Tube Neutrodyne One Sixty 160-A, Fada Radio & Electric Co.; Long Island (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Fada Radio & Electric Co.; Long Island (NY)
alternative name

Andrea-Radio || Nater, Henri, Atlanta-Radio; Zürich
Year: 1923–1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UV201A UV201A UV200 or UV201A UV201A
Main principle TRF without regeneration; 2 AF stage(s); Neutrodyne-Reflex
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 6; 22; 90 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Four Tube Neutrodyne One Sixty 160-A - Fada Radio & Electric Co.;
Material Wooden case

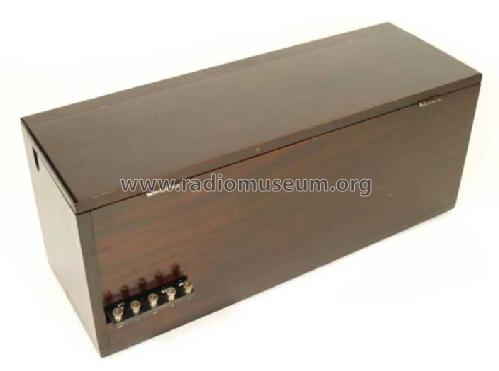

Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 19 x 8 x 8 inch / 483 x 203 x 203 mm
Notes

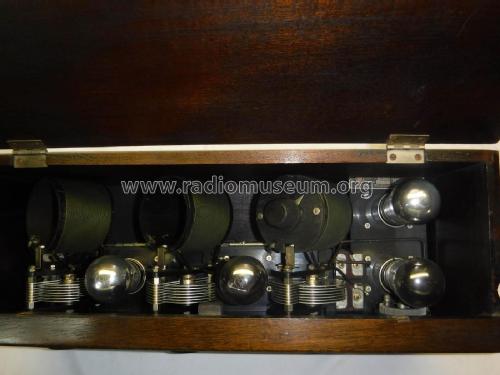

The Fada 160-A can be identified by a metal ID tag inside the radio near the battery terminals. It was the first radio produced with Hazeltine's Neutrodyne circuit, preceeding the Freed Eisemann NR-5 by about a week. It also has a reflex circuit with the 1st r.f. tube also being the 1st a.f. tube. It will operate with only three tubes if using headphones. Plugging a speaker plug into the speaker jack on the front panel closes contacts to power the 4th tube's (output tube) filament.

Other Fada Neutrodyne models with various numbers of tubes, manufactured or built from a kit, were also referred to with the generic brand name "One-Sixty" or "160" (when assembled). These included a 5 tube non reflex version of the same name One-Sixty, and kit versions 166-A (four tube reflex), and 167-A and 169-A, both 5 tube, not reflexing.

Price in first year of sale 120.00 $
Source of data Collector's Guide to Antique Radios (7th Edition)
Mentioned in K. H. Stark: How to build Hazeltine's neutrodyne circuit radio receiver. F.A.D.A., New York, 1923.
Literature/Schematics (1) Radio Manufacturers of the 1920s, Vol 1
Literature/Schematics (2) Adv. Radio Broadcast Apr. 1924, page 533
Literature/Schematics (3) Radio Broadcast, May 1923, p. 38

Model page created by Marco Gilardetti. See "Data change" for further contributors.
