248 ; Fairchild Recording (ID = 2131776) Ampl/Mixer
Fairchild Recording: 248 [Ampl/Mixer] ID = 2131776 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 248, Fairchild Recording Equipment Corp.; Whitestone NY

Country:  United States of America (USA)
Manufacturer / Brand:  Fairchild Recording Equipment Corp.; Whitestone NY
Year: 1959 Category: Audio Amplifier or -mixer
Valves / Tubes 8: EF86 EF86 EF86 EF86 ECC83 ECC83 6X4 6X4
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 248 - Fairchild Recording Equipment
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.5 x 8.5 x 6 inch / 368 x 216 x 152 mm
Notes

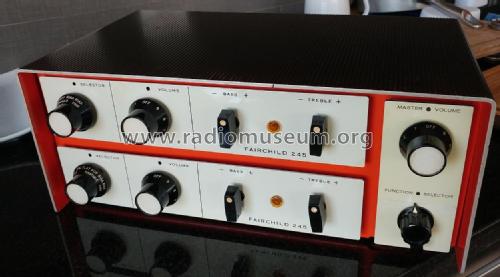

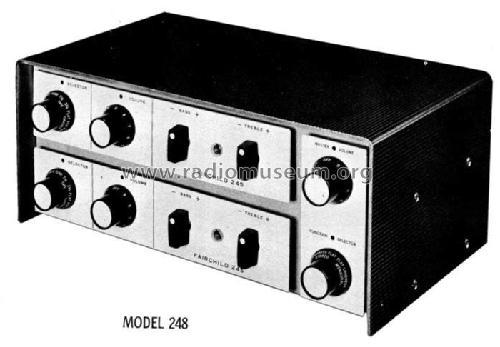

The Fairchild Model 248 is an AC operated Stereo Preamplifier and consists of two Models 245 and a Switching Circuit.



The Fairchild model 248 is a audio stereo preamplifier that is actually a combination of two Fairchild model 245 mono preamplifiers and a Fairchild model 247 stereo attachment (referred to as a stereo converter) in the manufacturers literature. The model 247 stereo attachment acts as a stereo/monophonic control system, with a master gain control and optional loudness compensation.

Net weight (2.2 lb = 1 kg) 20 lb (20 lb 0 oz) / 9.080 kg
Price in first year of sale 239.50 USA
Source of data - - Manufacturers Literature
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 4-59, Set 437, Folder 6)
Literature/Schematics (2) - - Manufacturers Literature (Schematic)
Literature/Schematics (3) - - Manufacturers Literature (Price List)

Model page created by Egon Penker. See "Data change" for further contributors.
