F67; FAR F.A.R., FA-R, (ID = 2152072) Radio
FAR F.A.R., FA-R,: F67 [Radio] ID = 2152072 1400x1102
Select picture or schematic to display from thumbnails on the right and click for download.
For model F67, FAR (F.A.R.), FA-R, André Carlier; Paris, Neuilly, Courbevoie:
F; F.A.R.; Paris; Modelle F65 Passivore - th

Country:  France
Manufacturer / Brand:  FAR (F.A.R.), FA-R, André Carlier; Paris, Neuilly, Courbevoie
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AF3 AK2 AF3 AB2 AF7 AL2 AZ1
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: F67 - FAR F.A.R., FA-R, André

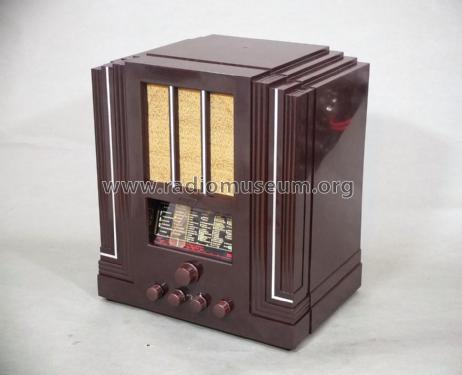

Material Bakelite case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 380 x 430 x 300 mm / 15 x 16.9 x 11.8 inch
Notes

Superhétérodyne à 8 lampes, toutes ondes. Série Parasivore.

In das voluminöse Bakelitgehäuse über dem Chassis eingebaute Rahmenantenne für Mittelwelle und Langwelle. Feldstärkeanzeige links neben der Skala, Umschaltung zwischen Rundfunkempfang und Schallplattenwiedergabe mittels Knopf der Tonblende.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 2'195.00 FRF
Mentioned in -- Original prospect or advert

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
