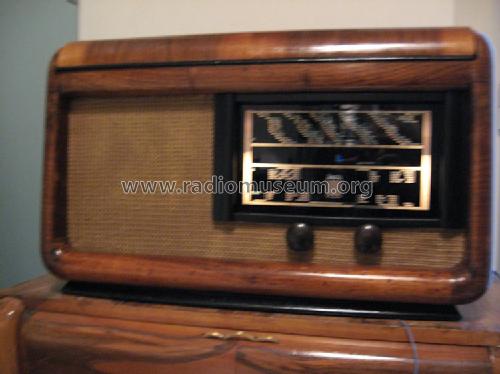

A-532; FARA Radio; Milano (ID = 938884) Radio A-532; FARA Radio; Milano (ID = 2472332) Radio
A-532; FARA Radio; Milano (ID = 2472334) Radio
Use red slider bar for more.
A-532; FARA Radio; Milano (ID = 844890) Radio
FARA Radio; Milano: A-532 [Radio] ID = 844890 848x659
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-532, FARA Radio; Milano:
Vista frontale con coperchio giradischi aperto e vista del giradischi a 78 rpm (Propietà Scalavino Giovanni)

Country:  Italy
Manufacturer / Brand:  FARA Radio; Milano
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBC3 EL3N AZ1
schematic requested
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 125;140; 160; 220 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 15 cm = 5.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: A-532 - FARA Radio; Milano
Material Wooden case
Dimensions (WHD) 510 x 400 x 300 mm / 20.1 x 15.7 x 11.8 inch
Notes Esteticamente è la versione radiogrammofono del ricevitore A 531.

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
