D541

D541; FARA Radio; Milano (ID = 213271) Radio
D541; FARA Radio; Milano (ID = 841609) Radio D541; FARA Radio; Milano (ID = 841610) Radio
D541; FARA Radio; Milano (ID = 841611) Radio D541; FARA Radio; Milano (ID = 841612) Radio
D541; FARA Radio; Milano (ID = 841613) Radio D541; FARA Radio; Milano (ID = 841614) Radio
D541; FARA Radio; Milano (ID = 841615) Radio D541; FARA Radio; Milano (ID = 841616) Radio
Use red slider bar for more.
D541; FARA Radio; Milano (ID = 841609) Radio
FARA Radio; Milano: D541 [Radio] ID = 841609 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model D541, FARA Radio; Milano

Country:  Italy
Manufacturer / Brand:  FARA Radio; Milano
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner

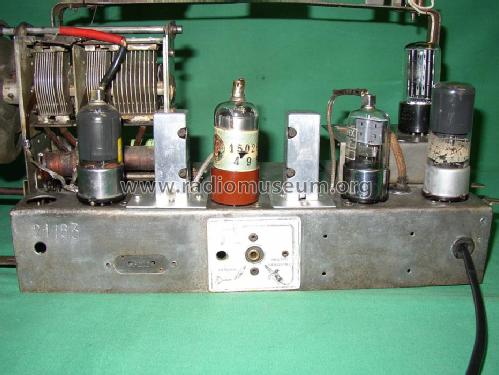

Valves / Tubes 5: 6A8 6K7 6Q7 6V6 5Y3
Main principle Superheterodyne (common); ZF/IF 450 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: D541 - FARA Radio; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 300 x 250 mm / 18.9 x 11.8 x 9.8 inch
Notes

Ingresso per giradischi. Controllo di tono a tre posizioni.

Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 66)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. F1)
Literature/Schematics (2) Il Radio Libro, (Ravalico) 8.Ed. (D. E. Ravalico - Il Radio Libro IX edizione - 1947)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from FARA Radio; Milano
Here you find 12 models, 11 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
