RM108; Farel, Radio; Genova (ID = 752107) R-Player
Farel, Radio; Genova: RM108 [R-Player] ID = 752107 432x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model RM108, Farel, Radio; Genova - Quinto

Country:  Italy
Manufacturer / Brand:  Farel, Radio; Genova - Quinto
Year: 1955 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5:
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Wire Recorder (or -Player); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out
from Radiomuseum.org Model: RM108 - Farel, Radio; Genova - Quinto
Material Wooden case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 320 x 230 x 420 mm / 12.6 x 9.1 x 16.5 inch

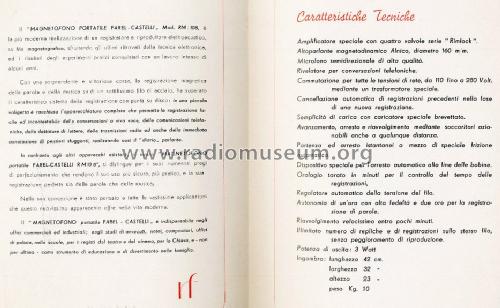

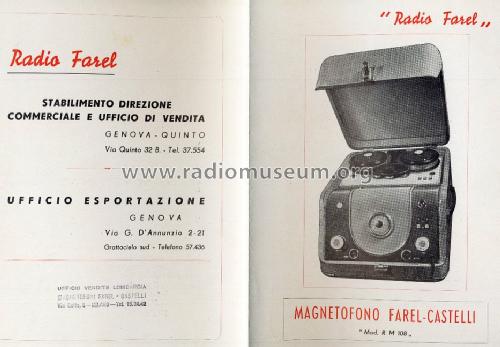

Notes Magnetofono Farel-Castelli RM 108. Mobile a valigetta con maniglia di trasporto.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Source of data - - Data from my own collection

Model page created by Adriano Scarpa. See "Data change" for further contributors.



All listed radios etc. from Farel, Radio; Genova - Quinto
Here you find 5 models, 3 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
