414N1 Chippendale

414N1 Chippendale ; Farnsworth (ID = 357067) Radio

414N1 Chippendale ; Farnsworth (ID = 357068) Radio

414N1 Chippendale ; Farnsworth (ID = 357069) Radio

414N1 Chippendale ; Farnsworth (ID = 357070) Radio

414N1 Chippendale ; Farnsworth (ID = 357071) Radio

414N1 Chippendale ; Farnsworth (ID = 357072) Radio

414N1 Chippendale ; Farnsworth (ID = 357073) Radio

414N1 Chippendale ; Farnsworth (ID = 357074) Radio

414N1 Chippendale ; Farnsworth (ID = 357076) Radio
414N1 Chippendale ; Farnsworth (ID = 1328752) Radio 414N1 Chippendale ; Farnsworth (ID = 1305159) Radio
414N1 Chippendale ; Farnsworth (ID = 1328760) Radio 414N1 Chippendale ; Farnsworth (ID = 1328765) Radio
414N1 Chippendale ; Farnsworth (ID = 1327890) Radio 414N1 Chippendale ; Farnsworth (ID = 1305165) Radio
414N1 Chippendale ; Farnsworth (ID = 1305166) Radio 414N1 Chippendale ; Farnsworth (ID = 1305160) Radio
414N1 Chippendale ; Farnsworth (ID = 1305164) Radio 414N1 Chippendale ; Farnsworth (ID = 1305162) Radio
Use red slider bar for more.
414N1 Chippendale ; Farnsworth (ID = 1328752) Radio

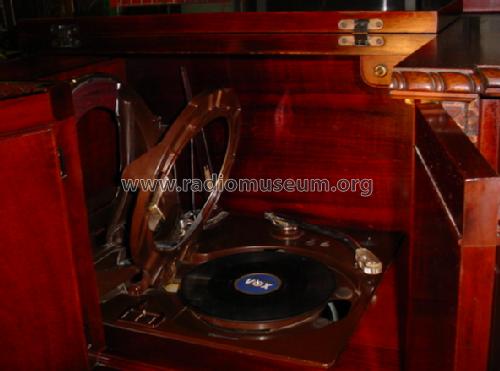

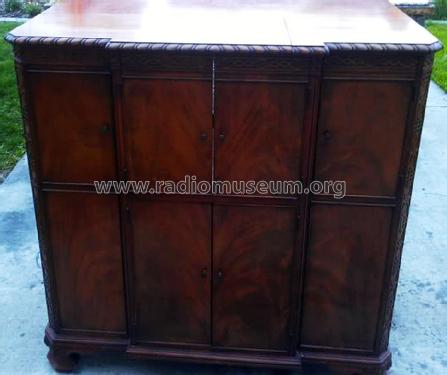

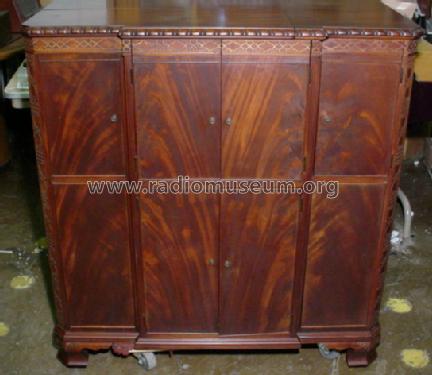

Farnsworth: 414N1 Chippendale [Radio] ID = 1328752 552x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 414N1 Chippendale, Farnsworth Television & Radio Corp. - see also Capehart:
By courtesy of member Donald Cochrane, shown at aladdinradio2.com.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1946–1948 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 28: 6SK7 6J5 6SA7 6SK7 6AF6 6SK7 6H6 6AG5 6C4 6AG5 6SK7 6SK7 6SK7 6H6 6SN7 6J7 6SN7 6J5 6J5 6J5 6J5 2A3 2A3 2A3 2A3 5Y3GT 5U4G 5U4G
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 245 Watts, 60 cycles, 117 = 105 - 125 Volt

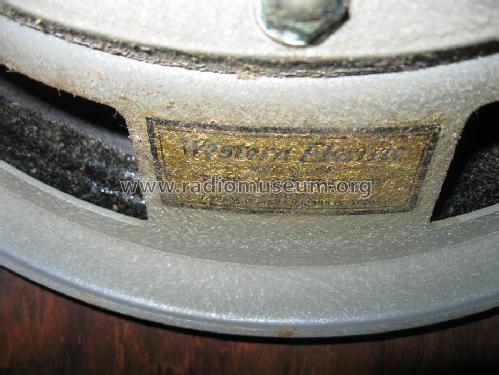

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 inch = 38.1 cm
Power out 30 W (undistorted)
from Radiomuseum.org Model: 414N1 Chippendale - Farnsworth Television & Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 42.75 x 43.5 x 22.75 inch / 1086 x 1105 x 578 mm
Notes

This is the model 414N Chippendale.
"Radio & TV Retailing", January 1947 for the N chassis of series 400: "With 18.5 watts undistorted output. Changer handles up to 20 discs, 10" and 12" intermixed, plays both sides continously. Radio with 17 tubes. Separate amlifier unit has another 8 tubes. Auditorium type 15" low frequency speaker plus one horn type speaker for treble. Capehart units start at $ 965. We count 26 tubes! According to Rider's, the N-400-Series have the same technique but different cabinets, 406N Adam, 413N Chippendale and 414 Chippendale. There are also Series 100N-chassis as simpler versions. See here the "Common information for the Capehart model pages for the 1930s and 1940s" and for the information about Series 400 here.

The Capehart model series 400 with Chippendale cabinet were made in five cabinet versions: The first models were called Chippendale 400 for 1931/32, followed by 400A (1932/33) and 400B (1933/34).
Model Chippendale 405 followed as Chippendale 405C in 1934/35, 405D, 405E, 405F and 405G (1938/39).
Then it changed style again and got model number 410G Chippendale, 410H, 410K and 410M. After the war the models had the changer 41-E instead of 16-E: 413N Chippendale followed with a parallel 414N Chippendale, both for 1946-1948), followed by 413P-Chippendale and 414P for 1948/49 as the last production.

Price in first year of sale 1'595.00 $
Mentioned in The Incomparable Capehart

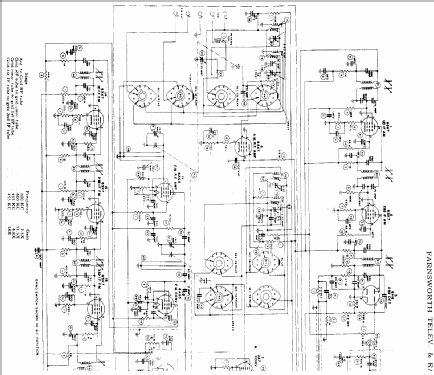

Literature/Schematics (1) Rider's Perpetual, Volume 18 = covering late 1947 to early 1948 (Farnsworth 18-16 to 18-44, RCD.CH Capehart 18-25 for 41-E.)

Model page created by Dirk Taekels. See "Data change" for further contributors.
