Drop in radio panel for phonograph 200 nickel finish

Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 2368368) Radio Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 405781) Radio
Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 1093169) Radio Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 785663) Radio

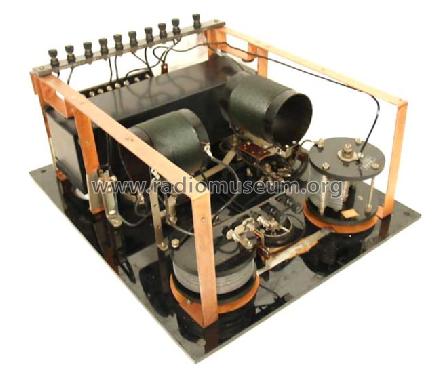

Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 405780) Radio Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 785665) Radio
Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 785664) Radio Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 785666) Radio
Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 785667) Radio Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 1093174) Radio
Use red slider bar for more.
Drop in radio panel for phonograph 200; Federal Radio Corp. (ID = 2368368) Radio
Federal Radio Corp.: Drop in radio panel for phonograph 200 [Radio] ID = 2368368 1400x1670
Select picture or schematic to display from thumbnails on the right and click for download.
For model Drop in radio panel for phonograph 200 nickel finish, Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY:
Collection privée (réf.: 127)

Country:  United States of America (USA)
Manufacturer / Brand:  Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY
alternative name

Federal Recorder || Federal Tel. & Radio || Federal T&T
Brand
Orthosonic / Ortho-Sonic
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A or 216A
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4 x 22,5 & 6 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Drop in radio panel for phonograph 200 [nickel finish] - Federal Radio Corp. / Federal
Material Bakelite, TUBES VISIBLE
Shape Chassis only or for «building in»
Dimensions (WHD) 15.25 x 16.875 x 0 inch / 387 x 429 x 0 mm
Notes

Radio panel for Victor model 215 Special.
Manufactured by Federal Telephone Manufacturing Corp. Buffalo NY. Enlarged panel cut-out to accommodate optional Western Electric 216 A "tennis ball" tube in 2nd AF stage. Model 417 is identical except for gold-plated panel hardware.

There is no case offered by Federal!

Net weight (2.2 lb = 1 kg) 8.2 kg / 18 lb 1 oz (18.062 lb)
Mentioned in Radio Manufacturers of the 1920s, Vol 1 (p.211)
