Deluxe Ch= AA763
Fender Electric Instrument Co.; Fullerton (CA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Fender Electric Instrument Co.; Fullerton (CA)
- Year
- 1963–1966
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 109294

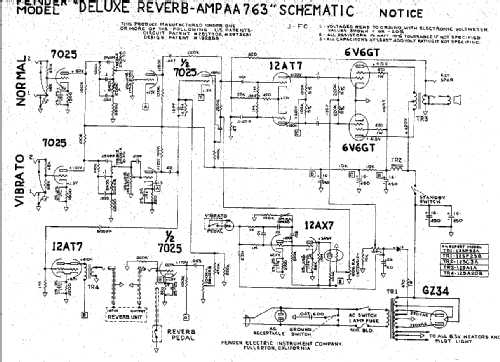

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Guitar Amplifier
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Deluxe Ch= AA763 - Fender Electric Instrument Co.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 17.5 x 22 x 9.5 inch / 445 x 559 x 241 mm
- Notes
- Blackface. Black handle, control panel and knobs, with a silver sparkle grille.
- Mentioned in
- -- Collector info (Sammler)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
