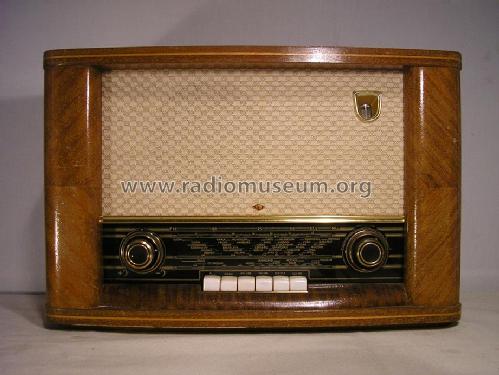

Seura F255-V

Seura F255-V; Fenno, Helsinki - (ID = 132446) Radio Seura F255-V; Fenno, Helsinki - (ID = 132447) Radio
Seura F255-V; Fenno, Helsinki - (ID = 132448) Radio Seura F255-V; Fenno, Helsinki - (ID = 132449) Radio
Seura F255-V; Fenno, Helsinki - (ID = 940210) Radio Seura F255-V; Fenno, Helsinki - (ID = 940211) Radio
Seura F255-V; Fenno, Helsinki - (ID = 940212) Radio Seura F255-V; Fenno, Helsinki - (ID = 940213) Radio
Seura F255-V; Fenno, Helsinki - (ID = 940214) Radio Seura F255-V; Fenno, Helsinki - (ID = 1141723) Radio
Use red slider bar for more.
Seura F255-V; Fenno, Helsinki - (ID = 132446) Radio
Fenno, Helsinki -: Seura F255-V [Radio] ID = 132446 576x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model Seura F255-V, Fenno, Helsinki - see also Philips

Country:  Finland
Manufacturer / Brand:  Fenno, Helsinki - see also Philips
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127/220/245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Seura F255-V - Fenno, Helsinki - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 545 x 355 x 225 mm / 21.5 x 14 x 8.9 inch
Notes Input for a record player.
T(Tasavirta)= DC; V(Vaihtovirta)= AC; TV = AC/DC.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)

Model page created by Jari Aalto. See "Data change" for further contributors.



All listed radios etc. from Fenno, Helsinki - see also Philips
Here you find 137 models, 115 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
