Jehu F273TV

Jehu F273TV; Fenno, Helsinki - (ID = 313907) Radio Jehu F273TV; Fenno, Helsinki - (ID = 313908) Radio
Jehu F273TV; Fenno, Helsinki - (ID = 313909) Radio Jehu F273TV; Fenno, Helsinki - (ID = 313910) Radio
Jehu F273TV; Fenno, Helsinki - (ID = 313911) Radio Jehu F273TV; Fenno, Helsinki - (ID = 313912) Radio
Jehu F273TV; Fenno, Helsinki - (ID = 313913) Radio
Use red slider bar for more.
Jehu F273TV; Fenno, Helsinki - (ID = 313907) Radio
Fenno, Helsinki -: Jehu F273TV [Radio] ID = 313907 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jehu F273TV, Fenno, Helsinki - see also Philips

Country:  Finland
Manufacturer / Brand:  Fenno, Helsinki - see also Philips
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner

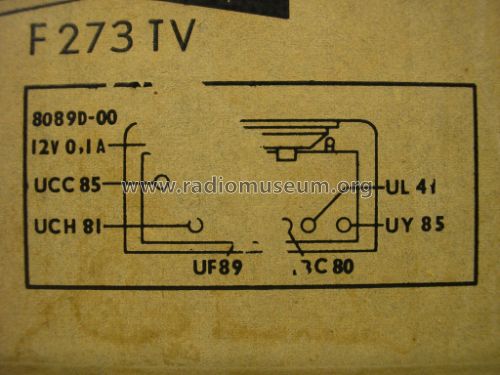

Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL41 UY85
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out
from Radiomuseum.org Model: Jehu F273TV - Fenno, Helsinki - see also
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 290 x 205 x 165 mm / 11.4 x 8.1 x 6.5 inch

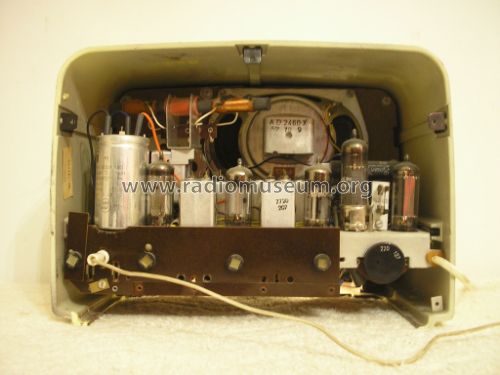

Notes The Fenno Jehu F273TV is very similar to F263TV. The chassis is like Philetta Philetta 273 BD273U but with UL41 and the case is Fenno's own. Output for an external speaker.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data - - Data from my own collection

Model page created by Jari Aalto. See "Data change" for further contributors.
