Seura V SRA (S4A)

Seura V SRA ; Fenno, Helsinki - (ID = 2055559) Radio Seura V SRA ; Fenno, Helsinki - (ID = 1170782) Radio
Seura V SRA ; Fenno, Helsinki - (ID = 2070295) Radio Seura V SRA ; Fenno, Helsinki - (ID = 2070296) Radio
Seura V SRA ; Fenno, Helsinki - (ID = 2070297) Radio Seura V SRA ; Fenno, Helsinki - (ID = 2070298) Radio
Seura V SRA ; Fenno, Helsinki - (ID = 2070299) Radio Seura V SRA ; Fenno, Helsinki - (ID = 2070300) Radio
Seura V SRA ; Fenno, Helsinki - (ID = 2070301) Radio
Use red slider bar for more.

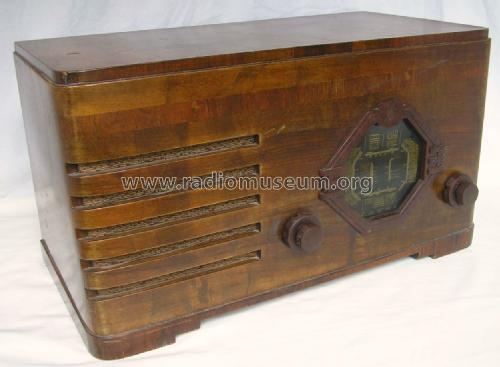

Seura V SRA ; Fenno, Helsinki - (ID = 2055559) Radio
Fenno, Helsinki -: Seura V SRA [Radio] ID = 2055559 1249x918
Select picture or schematic to display from thumbnails on the right and click for download.
For model Seura V SRA (S4A), Fenno, Helsinki - see also Philips

Country:  Finland
Manufacturer / Brand:  Fenno, Helsinki - see also Philips
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EB4 EL3 EZ3
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Seura V SRA - Fenno, Helsinki - see also
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 304 x 285 mm / 22 x 12 x 11.2 inch
Notes

Fenno SRA S4A;
60 W power consumption.

This model is comparable with Siera S4ATénor T4A-20 and Philips_456A-20.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
