• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ferguson (Brand), Ferguson Radio Corporation Ltd., British Radio Corporation Ltd.; London

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103073

• • Brand: TRF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Futura 388A - Ferguson Brand, Ferguson Radio

• Shape
• Tablemodel, low profile (big size).

• Notes

• An AC mains AM/FM table radio covering the MW (188-545 metres), LW (1160-1940 metres) and VHF (88-101 MHz) wavebands. Provision is made for the connection of external aerials, a gramophone pick-up and an external loudspeaker. Released July 1958 price £21 4s 7d plus purchase tax.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

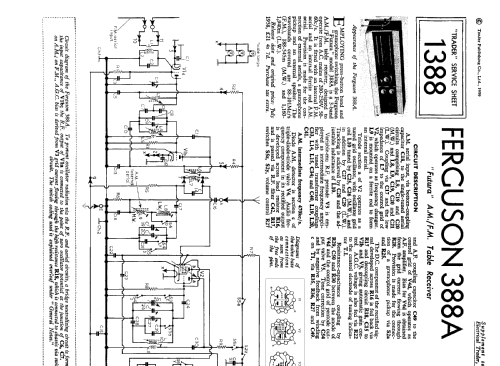

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1388 dated 31 January 1959)

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
