Stereogram SRG1120

Ferranti, GB

Data
Forum
Pictures
Collections

  • Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176055

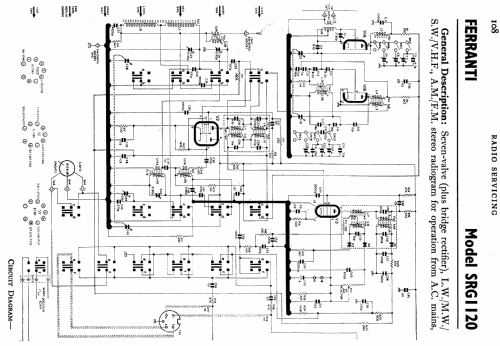

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereogram SRG1120 - Ferranti, GB
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

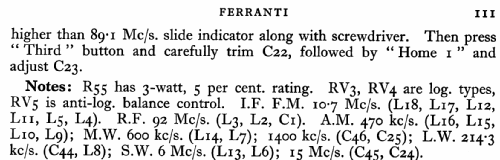

  • A stereo radiogram (mono radio) fitted with Garrard type AT5 record changer with a Sonotone 9TA cartridge or Garrard 3000LM record changer with a Sonotone 9TAHC cartridge. Covering VHF (87.5-100MHz), MW (195-545 metres), LW (1200-1800 metres) and SW (19-50 metres). and with four VHF radio station preset buttons.

    The same chassis is fitted into the Ekco SRG431 Stereogram.

  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
