Argyll Major 4 Track

Argyll Major ; Fidelity Radio Ltd.; (ID = 597535) R-Player

Argyll Major ; Fidelity Radio Ltd.; (ID = 597536) R-Player

Argyll Major ; Fidelity Radio Ltd.; (ID = 1326501) R-Player

Argyll Major ; Fidelity Radio Ltd.; (ID = 1326503) R-Player

Argyll Major ; Fidelity Radio Ltd.; (ID = 1326505) R-Player

Argyll Major ; Fidelity Radio Ltd.; (ID = 1326506) R-Player
Use red slider bar for more.
Argyll Major ; Fidelity Radio Ltd.; (ID = 597535) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Fidelity Radio Ltd.; London
Year: 1961 Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: EF86 ECC83 EL84 EL84 EM84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Argyll Major [4 Track] - Fidelity Radio Ltd.; London
Shape Tablemodel, with any shape - general.
Notes Portable tape recorder. Single speed (3.75 ips), four track, reel size 5.75 inch. Fitted with a BSR TD2 tape deck.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 31.00 GBP

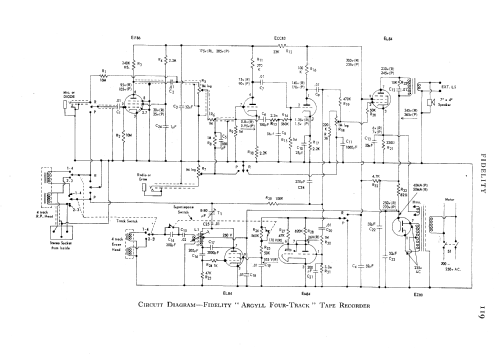

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) Trader Sheet 1524.

Model page created by Keith Staines. See "Data change" for further contributors.
