• Country
• United States of America (USA)

• Manufacturer / Brand
• Franklin Radio Corp.; Dayton (OH)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126708

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 6B7 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

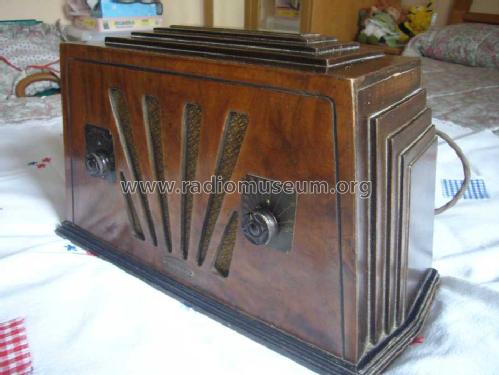

• Model: 54 - Franklin Radio Corp.; Dayton

• Notes
• BC (530-1500 kHz) band.

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
