FE-51-L

FE-51-L ; Freed Television and (ID = 418405) Radio

FE-51-L ; Freed Television and (ID = 2415593) Radio
FE-51-L ; Freed Television and (ID = 2415709) Radio FE-51-L ; Freed Television and (ID = 2415713) Radio
FE-51-L ; Freed Television and (ID = 2415712) Radio FE-51-L ; Freed Television and (ID = 2415716) Radio
FE-51-L ; Freed Television and (ID = 2415710) Radio FE-51-L ; Freed Television and (ID = 2415711) Radio
FE-51-L ; Freed Television and (ID = 2415714) Radio FE-51-L ; Freed Television and (ID = 2415715) Radio
Use red slider bar for more.
FE-51-L ; Freed Television and (ID = 2415709) Radio

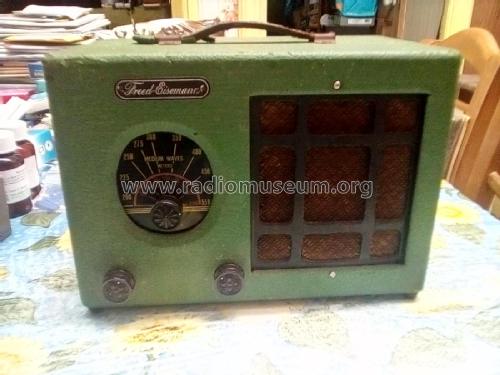

Freed Television and: FE-51-L [Radio] ID = 2415709 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE-51-L, Freed Television and Radio Co., N.Y.

Country:  United States of America (USA)
Manufacturer / Brand:  Freed Television and Radio Co., N.Y.
alternative name

Freed Radio and TV || Freed Radio Corporation
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6D6 6C6 43 25Z5
Semiconductors (the count is only for transistors) K55B
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: FE-51-L - Freed Television and Radio Co.
Notes Long wave (140 - 330 kHz) and BC (545 - 1580 kHz).
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
