Masterpiece 5F5 window dials no C-battery

Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 643369) Radio
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 225921) Radio Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 225922) Radio
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 225923) Radio Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 540672) Radio
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165706) Radio Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165708) Radio
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165716) Radio Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165717) Radio
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165720) Radio Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 1165723) Radio
Use red slider bar for more.
Masterpiece 5F5 window dials; Freshman Co. Inc., (ID = 225921) Radio
Freshman Co. Inc.,: Masterpiece 5F5 window dials [Radio] ID = 225921 765x325
Select picture or schematic to display from thumbnails on the right and click for download.
For model Masterpiece 5F5 window dials no C-battery, Freshman Co. Inc., Chas.., (Polydyne); New York

Country:  United States of America (USA)
Manufacturer / Brand:  Freshman Co. Inc., Chas.., (Polydyne); New York
Brand

C.A.Earl
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UX201A UX201A UX201A UX201A UX201A
Main principle TRF without regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Masterpiece 5F5 window dials [no C-battery] - Freshman Co. Inc., Chas..,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).

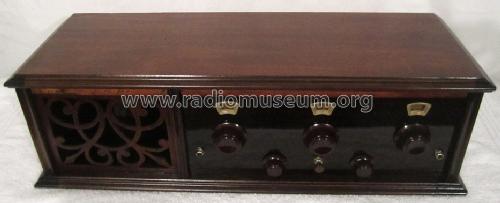

Notes Built in Utah Horn Speaker. Three tuning knobs (window dials); No C-battery. The late model Masterpiece 5F5 works with the end tube 112 and uses a C-battery - see there. The set has been built in big quantity - up to 2000 models a day.
Price in first year of sale 60.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Radio Manufacturers of the 1920's, Vol. 2


All listed radios etc. from Freshman Co. Inc., Chas.., (Polydyne); New York
Here you find 130 models, 73 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Freshman Co. Inc.,: Masterpiece 5F5 window dials
Threads: 1 | Posts: 2
Hits: 1775     Replies: 1
freshmanco: Fresfman Masterpiece 5F4
Ron Carroll
02.Oct.11
  1

Hi,

I am new to the forum and need a little help. I have a Freshman Masterpiece 5F4, but none of the schematic I can find have the same terminals. The layout that I have is as follows.

  AERIAL   GROUND     A-    A+     B-     B+     B+AMP

I have built a battery eliminator K101, but need to know the correct voltages before I attch it to the radio.

I belive they should be.

AREIAL  = ANTENNA

GROUND  = NOT SURE

A-    = -5v

A+   = +5v

B-    = NOT SURE

B+   = +45V

B+AMP  = +90V



If some one could verify the voltage and advise as to the others I would be appricative.

Thanks

RC



Konrad Birkner † 12.08.2014
04.Oct.11
  2

Aerial = Antenna

Ground = connect with waterpipe (sometimes not required; try !)


A- and A+ = 5 V DC ( originally 6 V storage battery)


B- = 0 V   (internally connected with A+)

B+ = 45 V (works between 30 and 70V)

B+Amp = 90 V (do not increase: there is no grid bias!)


Good luck,

KoBi


Freshman Co. Inc.,: Masterpiece 5F5 window dials
End of forum contributions about this model
