524
Use red slider bar for more.

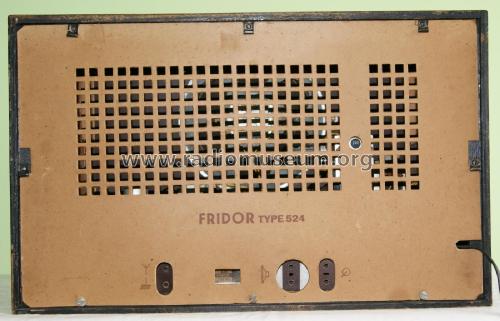

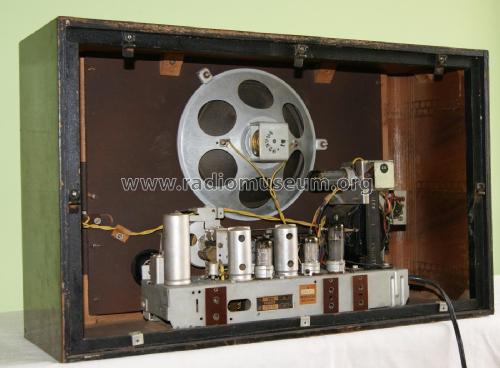

Fridor Fabrieken, N.: 524 [Radio] ID = 2024847 1400x989
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1951/1952 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 452 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-245 Volt |
| Loudspeaker | Permanent or electro-dynamic (moving coil), system not known yet. |
| Power out | |
| from Radiomuseum.org | Model: 524 - Fridor Fabrieken, N.V.; Den |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Price in first year of sale | 425.00 Hfl |
| Source of data | Technisch- Commercieel - Radio Vademecum Staleman |
Model page created by John Koster. See "Data change" for further contributors.
