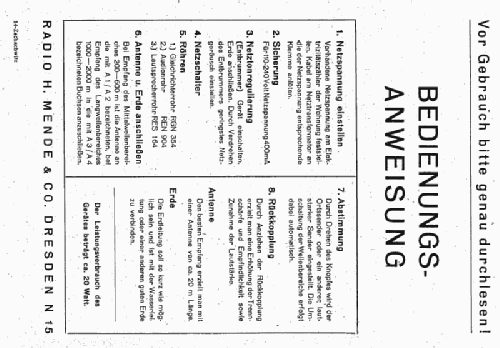

Select picture or schematic to display from thumbnails on the right and click for download.
For model EWM01, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: REN904 RES164 RGN354
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: EWM01 - Funkwerk Dresden, VEB, RFT
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 330 x 285 x 180 mm / 13 x 11.2 x 7.1 inch
Notes evtl. erste Ausführung von Mende 01 Es gibt auch Mende 02, Optisch wie 01, jedoch 1 kleiner Knopf mehr auf Vorderseite
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Historische Radios Band IV (169)
