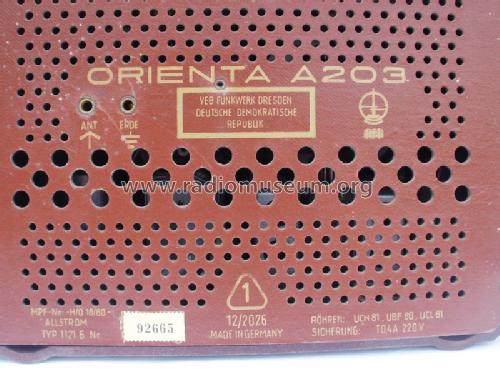

Orienta A203

Orienta A203; Funkwerk Dresden, (ID = 313905) Radio

Orienta A203; Funkwerk Dresden, (ID = 313950) Radio
Orienta A203; Funkwerk Dresden, (ID = 59815) Radio Orienta A203; Funkwerk Dresden, (ID = 382241) Radio
Orienta A203; Funkwerk Dresden, (ID = 59818) Radio Orienta A203; Funkwerk Dresden, (ID = 59819) Radio
Orienta A203; Funkwerk Dresden, (ID = 200910) Radio Orienta A203; Funkwerk Dresden, (ID = 382236) Radio
Orienta A203; Funkwerk Dresden, (ID = 382238) Radio Orienta A203; Funkwerk Dresden, (ID = 414414) Radio
Orienta A203; Funkwerk Dresden, (ID = 414415) Radio Orienta A203; Funkwerk Dresden, (ID = 414416) Radio
Use red slider bar for more.
Orienta A203; Funkwerk Dresden, (ID = 59815) Radio
Funkwerk Dresden,: Orienta A203 [Radio] ID = 59815 560x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orienta A203, Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.):
Bild aus Ebay

Country:  Germany
Manufacturer / Brand:  Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH81 UBF80 UCL81
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Orienta A203 - Funkwerk Dresden, VEB, RFT
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 237 x 170 x 125 mm / 9.3 x 6.7 x 4.9 inch
Notes Exportgerät ähnlich "Minorette" A 201
Price in first year of sale 150.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
