• Country
• Germany

• Manufacturer / Brand
• Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 16505

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UCH81 UF85 UABC80 UEL51

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

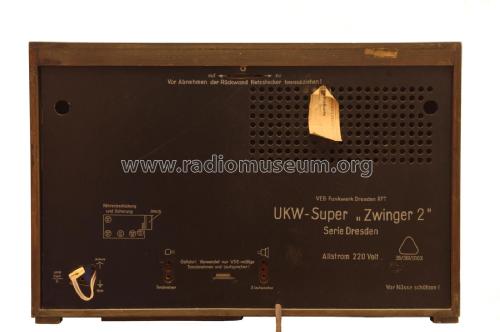

• Model: UKW-Super Zwinger 2 / Serie Dresden - Funkwerk Dresden, VEB, RFT

• Dimensions (WHD)
• 580 x 380 x 290 mm / 22.8 x 15 x 11.4 inch

• Notes
• Anschluss für Zusatzlautsprecher und TA

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 411.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Radio und Fernsehen 6/1956

• Other Models

• Here you find 103 models, 91 with images and 69 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)
