UKW-Super Zwinger 6 / Serie Dresden

Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 16510

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 127, 220, 240 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 20 cm = 7.9 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: UKW-Super Zwinger 6 / Serie Dresden - Funkwerk Dresden, VEB, RFT
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 580 x 380 x 295 mm / 22.8 x 15 x 11.6 inch
  • Notes
  • Zwinger 3 mit Hochtonabstrahlung nach oben.
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

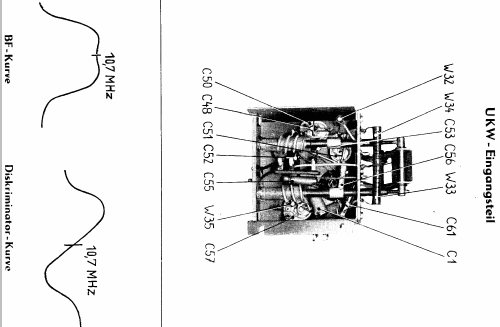

  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model UKW-Super is part of the collections of the following members.

 Forum

Forum contributions about this model: Funkwerk Dresden,: UKW-Super Zwinger 6 / Serie Dresden

Threads: 1 | Posts: 3

Guten Abend,

Ich bin mit der Reparatur eines UKW-Super "Zwinger 6" beschäftigt,

Das Radio sagt keinen Ton, aber das ist nicht der schlimmste Fehler am Gerät.

Das Skalenseil ist gerissen und ich habe auch hier in diesen Forum keinen

Plan dazu gefunden, kann mir jemand helfen?

     Mit freundlichen Grüßen

            Jochen Neumann

Jochen Neumann, 23.Aug.20

Weitere Posts (3) zu diesem Thema.
