• Year
  • 1952 ??
  • Category
  • Military Equipment (not Re, Tr or RXT)
  • Radiomuseum.org ID
  • 273058

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 470/? kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 90 / 2,4 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

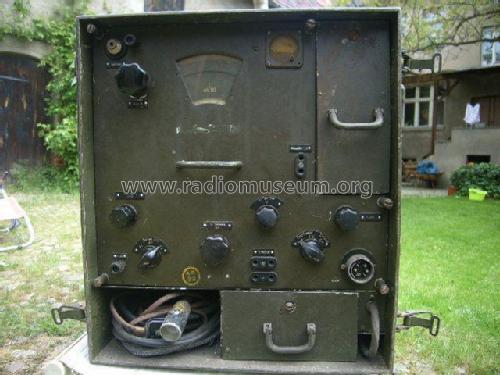

  • Model: EK1 - Funkwerk Leipzig, VEB, - vorm.
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 450 x 365 x 280 mm / 17.7 x 14.4 x 11 inch
  • Notes
  • Stromversorgung:

    BAS 80 = 90 Volt

    2,4 NC 25 = 2,4 Volt - 25 Ah

  • Net weight (2.2 lb = 1 kg)
  • 17 kg / 37 lb 7.1 oz (37.445 lb)
  • Mentioned in
  • DV- 44/12 Beschreibung und Bedienungsanweisung zum Kurzwellenempfänger EK1
  • Author
  • Model page created by Christoph Steinecke. See "Data change" for further contributors.
