Kinoverstärker TV2

Kinoverstärker TV2; Funkwerk Leipzig, (ID = 2099309) Ampl/Mixer

Kinoverstärker TV2; Funkwerk Leipzig, (ID = 2099310) Ampl/Mixer
Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284335) Ampl/Mixer Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1254608) Ampl/Mixer
Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1254609) Ampl/Mixer Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1254610) Ampl/Mixer
Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284336) Ampl/Mixer Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284337) Ampl/Mixer
Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284338) Ampl/Mixer Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284339) Ampl/Mixer

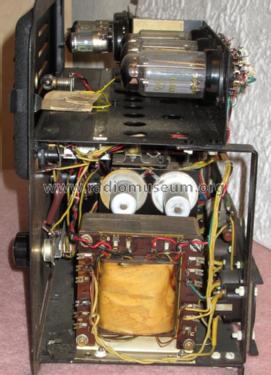

Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284340) Ampl/Mixer Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284341) Ampl/Mixer
Use red slider bar for more.
Kinoverstärker TV2; Funkwerk Leipzig, (ID = 1284335) Ampl/Mixer
Funkwerk Leipzig,: Kinoverstärker TV2 [Ampl/Mixer] ID = 1284335 752x528
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kinoverstärker TV2, Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.):
aus ebay, #140789939801, Verkäufer mikrofonkapsel

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1951 Category: Audio Amplifier or -mixer
Valves / Tubes 6: EF12 EF12 EF12 EL12 EL12 EYY13
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Kinoverstärker TV2 - Funkwerk Leipzig, VEB, - vorm.
Shape Tablemodel, with any shape - general.
Notes Funkwerk Leipzig TV2;
Tragbarer (Kino-)Saalverstärker. 20 W Gegentakt. Anschlüsse für Rundfunk-Schallplatte-Mikrophon-Tonzelle 1-Tonzelle 2 Eingang sowie Saalregler.

Model page created by a member from A. See "Data change" for further contributors.
