Lautsprecher-Chassis-Oval L2653PO

Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1565800) Speaker-P Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1565801) Speaker-P
Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1565802) Speaker-P Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1565803) Speaker-P
Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1566045) Speaker-P Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1566046) Speaker-P
Use red slider bar for more.

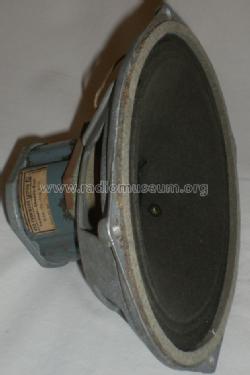

Lautsprecher-Chassis-Oval L2653PO; Funkwerk Leipzig, (ID = 1565800) Speaker-P
Funkwerk Leipzig,: Lautsprecher-Chassis-Oval L2653PO [Speaker-P] ID = 1565800 623x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Chassis-Oval L2653PO, Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Year: 1953 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Lautsprecher-Chassis-Oval L2653PO - Funkwerk Leipzig, VEB, - vorm.
Shape Chassis only or for «building in»
Dimensions (WHD) 213 x 155 x 102 mm / 8.4 x 6.1 x 4 inch
Notes

Impedanz 4,1 Ω (4 Ω), Sprechleistung 2 W.

Verwendet in den Modellen Schwarzburg und Naumburg von Stern-Radio Sonneberg. Bekannt sind verschiedene Versionen des Lautsprecher-Chassis in Metall (Alu-Guss), Bakelit und Phenolharz (auch mit angepresster Schallwand) und verschiedenen Magnetformen.

Net weight (2.2 lb = 1 kg) 1.310 kg / 2 lb 14.2 oz (2.885 lb)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Funkwerk Leipzig, VEB, - vorm. Körting-Radio (Ostd.)
Here you find 154 models, 107 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Collection of a member from D
