• Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72836
    • alternative name: Radio- und Metallw.; Zittau

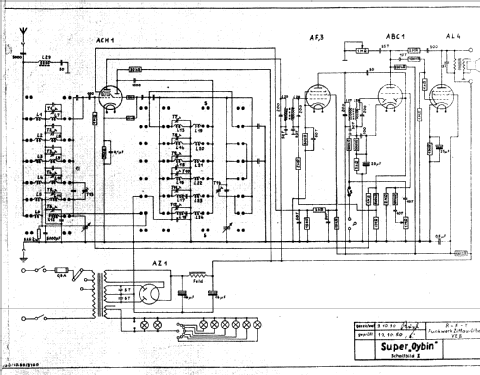

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Oybin B - Funkwerk Zittau, VEB, RFT, -
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 455 x 365 x 250 mm / 17.9 x 14.4 x 9.8 inch
  • Notes
  • 4xKW, keramischer Spezial-Wellenschalter von Hescho-Hermsdorf. Vorbereitet für UKW-Vorsatzgerät. FW Zittau war vormals Seibt.
  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange-Nowisch
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
