Berolina 58/54W

Berolina 58/54W; Funkwerkstätten (ID = 1194814) Radio Berolina 58/54W; Funkwerkstätten (ID = 1194815) Radio
Berolina 58/54W; Funkwerkstätten (ID = 1194816) Radio Berolina 58/54W; Funkwerkstätten (ID = 1194817) Radio

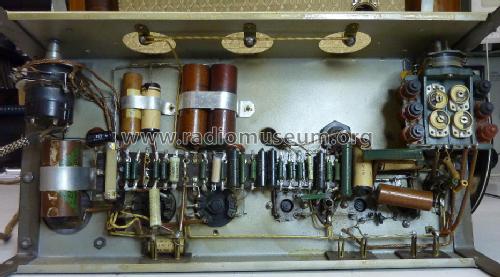

Berolina 58/54W; Funkwerkstätten (ID = 1194818) Radio Berolina 58/54W; Funkwerkstätten (ID = 1194819) Radio
Use red slider bar for more.
Berolina 58/54W; Funkwerkstätten (ID = 1194814) Radio
Funkwerkstätten: Berolina 58/54W [Radio] ID = 1194814 933x636
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berolina 58/54W, Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.):
Jäckel Bernburg Berolina58/54W

Country:  Germany
Manufacturer / Brand:  Funkwerkstätten Bernburg, PGH; Bernburg/Saale (Ostd.)
alternative name

Bernburg Funkw. A. Ulrich
Brand
Radio Jäckel
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 ECL11 AZ11 6E5_DDR
Main principle Superheterodyne (common)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Berolina 58/54W - Funkwerkstätten Bernburg, PGH;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 590 x 390 x 290 mm / 23.2 x 15.4 x 11.4 inch
Notes Spulensatz SU1 und 3 Bandfilter von HFWM.
Firmierung noch Ing. Siegfried Jäckel, Tonmöbel und Gerätebau Bernburg.

Model page created by Wolfgang Leifer. See "Data change" for further contributors.
