Atalanta K2

Atalanta K2; GBC; Milano (ID = 785006) Radio

Atalanta K2; GBC; Milano (ID = 785007) Radio

Atalanta K2; GBC; Milano (ID = 785008) Radio

Atalanta K2; GBC; Milano (ID = 785009) Radio
Use red slider bar for more.
Atalanta K2; GBC; Milano (ID = 785006) Radio

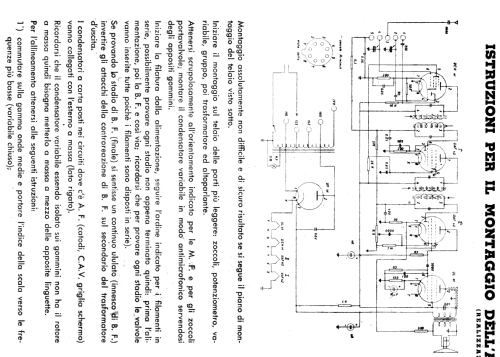

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Atalanta K2 - GBC; Milano
Shape Chassis only or for «building in»
Source of data -- Original prospect or advert

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from GBC; Milano
Here you find 282 models, 221 with images and 145 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
