Bristol II FV-7

Bristol II FV-7; GBC; Milano (ID = 1064454) R-Player
Bristol II FV-7; GBC; Milano (ID = 661701) R-Player
Use red slider bar for more.
Bristol II FV-7; GBC; Milano (ID = 661701) R-Player
GBC; Milano: Bristol II FV-7 [R-Player] ID = 661701 593x700

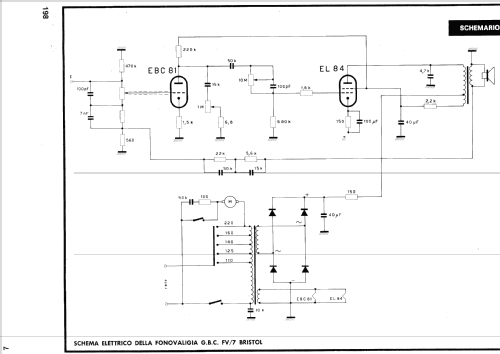

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bristol II FV-7, GBC; Milano:
Selezione Radio-TV Marzo 1963

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1963 Category: Sound/Video Recorder and/or Player
Valves / Tubes 2: EBC81 EL84
Main principle Audio-Amplification
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Bristol II FV-7 - GBC; Milano
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 370 x 210 x 440 mm / 14.6 x 8.3 x 17.3 inch
Notes

Fonovaligia di gran lusso con cambiadischi automatico a 4 velocità
Regolatori di volume,toni alti e bassi
Predisposta per la riproduzione stereo

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 68'900.00 ITL
Literature/Schematics (1) Selezione Radio-TV Marzo 1963

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
