Kent AR/10

Kent AR/10; GBC; Milano (ID = 746895) Radio
Kent AR/10; GBC; Milano (ID = 710685) Radio Kent AR/10; GBC; Milano (ID = 1611223) Radio
Kent AR/10; GBC; Milano (ID = 2275883) Radio Kent AR/10; GBC; Milano (ID = 2275884) Radio
Kent AR/10; GBC; Milano (ID = 2275885) Radio Kent AR/10; GBC; Milano (ID = 2275886) Radio
Kent AR/10; GBC; Milano (ID = 2275888) Radio Kent AR/10; GBC; Milano (ID = 2275892) Radio
Use red slider bar for more.
Kent AR/10; GBC; Milano (ID = 710685) Radio
GBC; Milano: Kent AR/10 [Radio] ID = 710685 738x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kent AR/10, GBC; Milano:
Catalogo produzione G.B.C. 1967

Country:  Italy
Manufacturer / Brand:  GBC; Milano
alternative name

Gian Bruto Castelfranchi
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: SFT308 SFT307 SFT307 SFT353 SFT323 SFT323
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Kent AR/10 - GBC; Milano

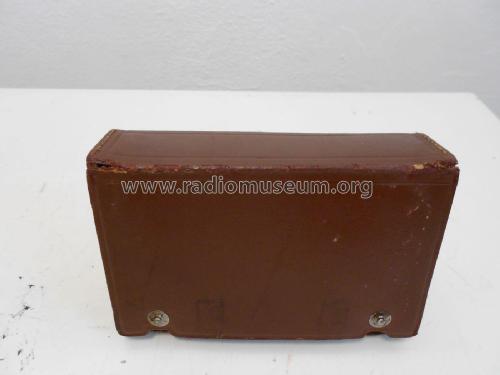

Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 178 x 110 x 50 mm / 7 x 4.3 x 2 inch

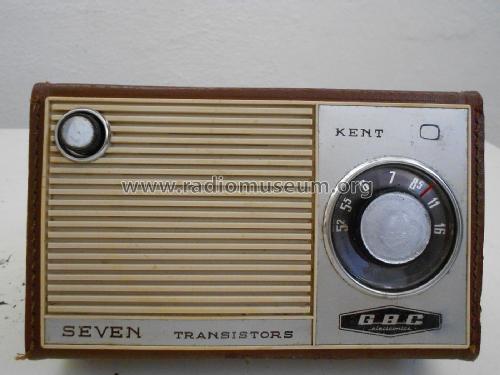

Notes Antenna in ferroxube incorporata, scala ad orologio con sintonia demoltiplicata.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Mentioned in Catalogo produzione G.B.C. 1967

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
