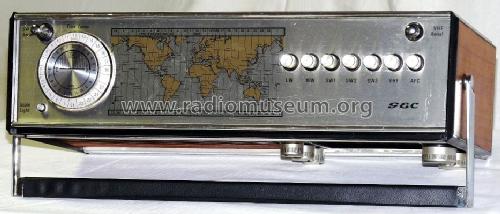

2541; GEC, General (ID = 673601) Radio
GEC, General: 2541 [Radio] ID = 673601 892x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2541, GEC, General Electric Co.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  GEC, General Electric Co.; London
Brand

Gecophone
Year: 1970 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF185 BF195 BF195 BF194 BF194 BC148 BC148 unknown_tr AC128 AC188 AC187
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 200-250 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 2541 - GEC, General Electric Co.;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 15.25 x 8 x 4.625 inch / 387 x 203 x 117 mm
Notes

Six wavebands, scale light, time zones scale, tuning and battery check meter, fine tuning control, switched AFC, 46 inch SW telescopic aerial, 32 inch hinged VHF telescopic aerial, treble and bass controls.

Power output 1.5 watts on battery, 2.5 watts on mains. Elliptical loudspeaker 6 x 4 inch. Sockets for earphone or external loudspeaker, and tape recorder. Similar to the Sobell 1541 model.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Mentioned in ERT Service Chart 1803 dated August 5 1971

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
