For model 1541, Sobell Ind., Slough

Country:  Great Britain (UK)
Manufacturer / Brand:  Sobell Ind., Slough
Year: 1970/1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF185 BF195 BF195 BF194 BF194 BC148 BC148 unknown_tr AC128 AC188 AC187
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 200-250/ 6x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 1541 - Sobell Ind., Slough
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 15.75 x 8 x 4.625 inch / 400 x 203 x 117 mm
Notes

Six wavebands, LW, MW, 3xSW, VHF; Shortwave 1.6-27.0 MHz; scale light, time zones scale, tuning and battery check meter, fine tuning control, switched AFC, 46 inch SW telescopic aerial, and a seperate 32 inch hinged VHF telescopic aerial, treble and bass controls.

Power output 1.5 watts on battery, 2.5 watts on mains. Elliptical loudspeaker 6 x 4 inch. Sockets for earphone or external loudspeaker, tape recorder and external aerial. Similar to the GEC 2541 model.

(Wellenbereiche: LW, MW, 3xKW, UKW; Kurzwelle 1,6-27,0 MHz; zwei getrennte Telskopantennen für KW und UKW Anschlüsse für externe Antenne, Kopfhörer und Tonband)

Price in first year of sale 48.50 £

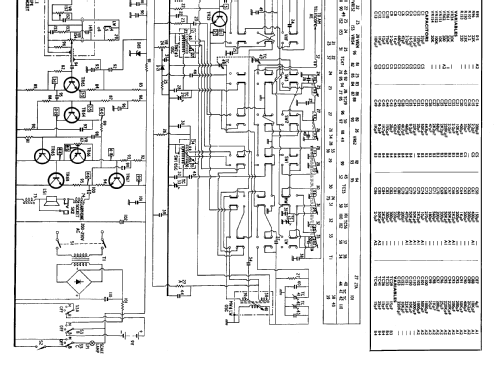

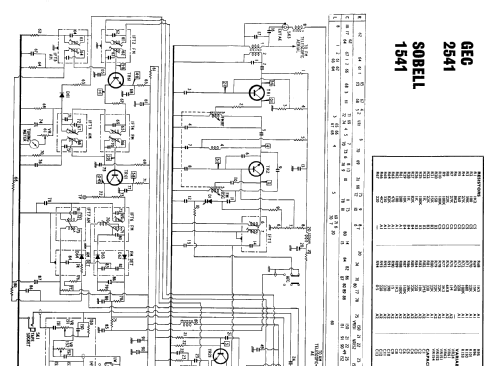

Literature/Schematics (1) ERT Service Chart 1803 dated August 5 1971
