• Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84927

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 140, 160, 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 26G25 - Geloso SA; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 510 x 270 x 260 mm / 20.1 x 10.6 x 10.2 inch
  • Notes
  • 5 gamme d'onda: OM (180/580m) e 4 OC di tipo allargato (50-31-25-19m).
    Altoparlante magnetodinamico Geloso SP200 con potenza media di 3-4W.
    Gruppo A.F. Geloso 2661-F.

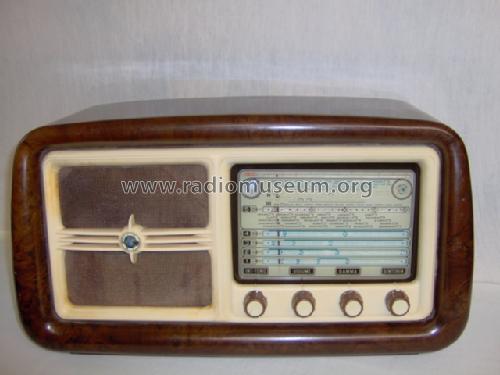

    Mobile in bachelite marrone con pannello frontale avorio.

    5 wave bands: BC + 4 SW.
    Magnet dynamic loudspeaker: Geloso SP200 (3-4W).
    Brown bakelite case with ivory front panel.
  • Mentioned in

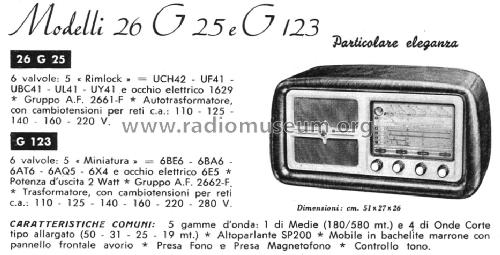

  • Catalogo Generale Radioprodotti Geloso 1954-55, p. 179
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
