G110 G110M (Marrone)

G110; Geloso SA; Milano (ID = 230523) Radio

G110; Geloso SA; Milano (ID = 853592) Radio

G110; Geloso SA; Milano (ID = 891156) Radio
G110; Geloso SA; Milano (ID = 1616995) Radio G110; Geloso SA; Milano (ID = 219076) Radio
G110; Geloso SA; Milano (ID = 1479661) Radio G110; Geloso SA; Milano (ID = 1479660) Radio
G110; Geloso SA; Milano (ID = 141473) Radio G110; Geloso SA; Milano (ID = 634715) Radio
G110; Geloso SA; Milano (ID = 151917) Radio G110; Geloso SA; Milano (ID = 1089315) Radio
G110; Geloso SA; Milano (ID = 1089316) Radio G110; Geloso SA; Milano (ID = 1479659) Radio
Use red slider bar for more.
G110; Geloso SA; Milano (ID = 1616995) Radio
Geloso SA; Milano: G110 [Radio] ID = 1616995 900x725
Select picture or schematic to display from thumbnails on the right and click for download.
For model G110 G110M (Marrone), Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1952–1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 467 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 140, 160, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: G110 [G110M ] - Geloso SA; Milano
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 120 x 150 mm / 9.4 x 4.7 x 5.9 inch
Notes

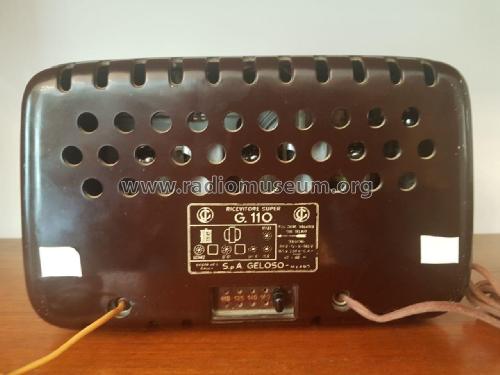

Mobile in materiale plastico color marrone.
5 gamme d'onda: OM (180/580m) e 4 OC di tipo allargato (50-31-25-19m).
Altoparlante magnetodinamico Geloso SP100 da 106mm.
Gruppo A.F. Geloso 2661.
Borsa custodia opzionale.

Prezzo 1955-56: 21.800 ITL.

Brown case.
5 wave bands: BC + 4 SW.
Magnet dynamic loudspeaker: Geloso SP100.
Optional leather bag.

Dial lamp: 6V/0,15A.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 24,500.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original-techn. papers. (Catalogo Generale Radioprodotti Geloso 1953 e 1954-55, p. 178)

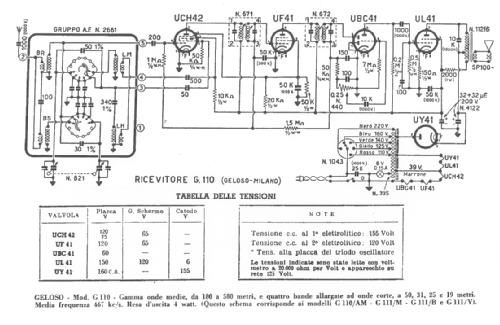

Literature/Schematics (1) Catalogo ANIE (1955-56)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
