G114 /R

G114 /R; Geloso SA; Milano (ID = 152527) Radio

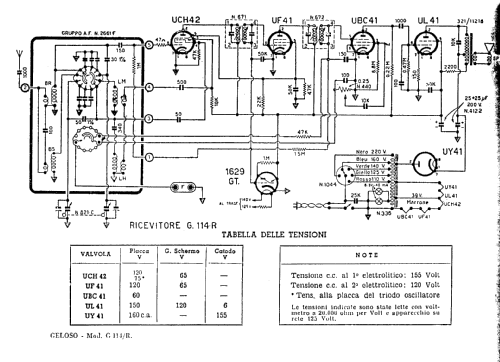

G114 /R; Geloso SA; Milano (ID = 891157) Radio
G114 /R; Geloso SA; Milano (ID = 2465773) Radio G114 /R; Geloso SA; Milano (ID = 2465774) Radio
G114 /R; Geloso SA; Milano (ID = 1122370) Radio G114 /R; Geloso SA; Milano (ID = 2228366) Radio
G114 /R; Geloso SA; Milano (ID = 1122369) Radio G114 /R; Geloso SA; Milano (ID = 1122371) Radio
G114 /R; Geloso SA; Milano (ID = 1122372) Radio G114 /R; Geloso SA; Milano (ID = 1122373) Radio
G114 /R; Geloso SA; Milano (ID = 1122374) Radio G114 /R; Geloso SA; Milano (ID = 141478) Radio
Use red slider bar for more.
G114 /R; Geloso SA; Milano (ID = 2465773) Radio
Geloso SA; Milano: G114 /R [Radio] ID = 2465773 1400x778
Select picture or schematic to display from thumbnails on the right and click for download.
For model G114 /R, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UF41 UBC41 UL41 1629 UY41
Main principle Superheterodyne (common); ZF/IF 467 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 140, 160, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 cm = 0.8 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: G114 /R - Geloso SA; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 275 x 210 mm / 19.9 x 10.8 x 8.3 inch
Notes 5 gamme d'onda: OM (180/580m) e 4 OC di tipo allargato (50-31-25-19m).
Altoparlante magnetodinamico Geloso SP125 da 127mm.
Gruppo A.F. Geloso 2661-F.

5 wave bands: BC + 4 SW.
Magnet dynamic loudspeaker: Geloso SP125.
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original-techn. papers. (Catalogo Generale Radioprodotti Geloso 1954-55, p. 179)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
