G203-HF

G203-HF; Geloso SA; Milano (ID = 364374) Ampl/Mixer

G203-HF; Geloso SA; Milano (ID = 891013) Ampl/Mixer
G203-HF; Geloso SA; Milano (ID = 1277859) Ampl/Mixer G203-HF; Geloso SA; Milano (ID = 1535856) Ampl/Mixer
G203-HF; Geloso SA; Milano (ID = 1277819) Ampl/Mixer G203-HF; Geloso SA; Milano (ID = 1535857) Ampl/Mixer
G203-HF; Geloso SA; Milano (ID = 1535858) Ampl/Mixer G203-HF; Geloso SA; Milano (ID = 1535859) Ampl/Mixer
G203-HF; Geloso SA; Milano (ID = 1535860) Ampl/Mixer G203-HF; Geloso SA; Milano (ID = 1535861) Ampl/Mixer
Use red slider bar for more.
G203-HF; Geloso SA; Milano (ID = 1277859) Ampl/Mixer
Geloso SA; Milano: G203-HF [Ampl/Mixer] ID = 1277859 765x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model G203-HF, Geloso SA; Milano:
da venditore Ebay internet

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1962 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 12AX7 or ECC83 12AX7 or ECC83 6BM8 or ECL82 6BM8 or ECL82
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7 W (10 W max.)
from Radiomuseum.org Model: G203-HF - Geloso SA; Milano
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 190 x 180 mm / 13 x 7.5 x 7.1 inch
Notes Amplificatore 7-11 watt BF. Raddrizzatore B250/C100.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 32'025.00 LIT
Mentioned in Bollettino Tecnico Geloso (N. 78-79 primavera-estate 1962)

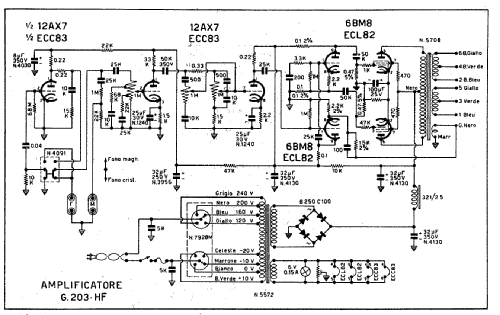

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
