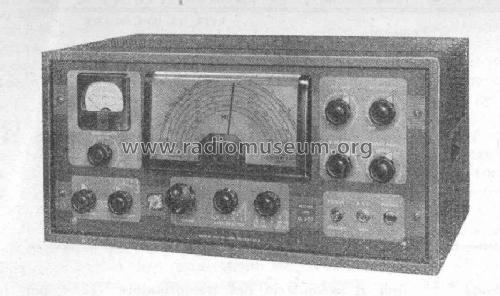

Geloso SA; Milano: G207 [Amateur-R] ID = 392489 933x553
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 | Category: Amateur-Receiver (amateur bands, may include broadcast bands) | ||||
| Valves / Tubes | 13: 6BA6 6BE6 6C4 6BE6 6BA6 6BA6 6AL5 6AL5 6AU6 6AL5 6SL7GT 6V6 5Y3 VR150 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 467/4600 kHz |
|---|---|
| Wave bands | Short Wave (SW only) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125;140; 160; 220; 280 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: G207 - Geloso SA; Milano |
| Material | Metal case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 516 x 254 x 260 mm / 20.3 x 10 x 10.2 inch |
| Notes | 6 gamme oc amatoriali: 10-11-15-20-40-80 mt, doppia conversione di frequenza, filtro a cristallo, modulazione di frequenza (N.B.F.M.), ricezione fonia cw, limitatore di disturbi. HAM-bands 80 to 10 mt, double conversion, cristal filter, noise limiter |
| Net weight (2.2 lb = 1 kg) | 13 kg / 28 lb 10.1 oz (28.634 lb) |
| Mentioned in | Funk-Technik (FT) (8/1954, S. 213, 214 / Beschreibung, Schema) |
| Literature/Schematics (1) | Bollettino Tecnico Geloso (n. 52-53 autunno-inverno 1952) |
Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
