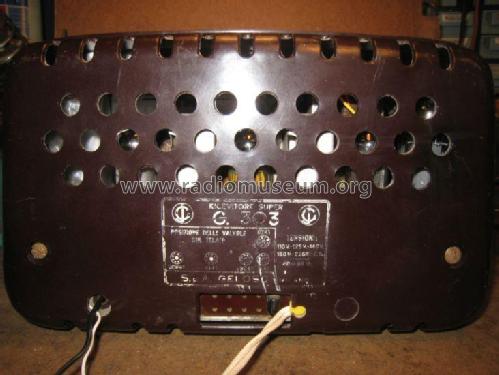

Geloso SA; Milano: G303 [Radio] ID = 797195 933x658
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1956/1957 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

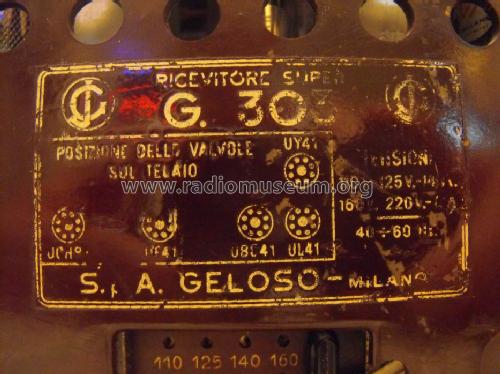

| Valves / Tubes | 5: UCH81 UF41 UBC41 UL41 UY41 | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast plus more than 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140, 190, 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: G303 - Geloso SA; Milano |
| Material | Bakelite or Plastics (type unknown) |

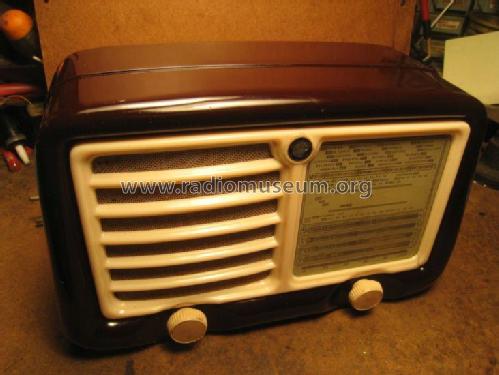

| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 250 x 150 x 120 mm / 9.8 x 5.9 x 4.7 inch |
| Notes | Mobile in due varianti di colore. |
| Source of data | Guida Pratica Antique Radio (1) 1999 |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
