G335

G335; Geloso SA; Milano (ID = 1407684) Radio G335; Geloso SA; Milano (ID = 1407685) Radio
G335; Geloso SA; Milano (ID = 1407686) Radio G335; Geloso SA; Milano (ID = 1407689) Radio
Use red slider bar for more.

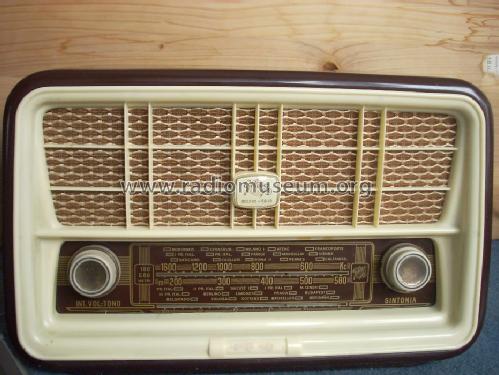

G335; Geloso SA; Milano (ID = 1407684) Radio
Geloso SA; Milano: G335 [Radio] ID = 1407684 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model G335, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: UCH81 UBF89 UCL82
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: G335 - Geloso SA; Milano
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 240 x 200 mm / 14.6 x 9.4 x 7.9 inch
Notes Serie ANIE.
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Geloso SA; Milano
Here you find 837 models, 746 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
