Amplificatore G60A

Amplificatore G60A; Geloso SA; Milano (ID = 298997) Ampl/Mixer

Amplificatore G60A; Geloso SA; Milano (ID = 298995) Ampl/Mixer

Amplificatore G60A; Geloso SA; Milano (ID = 298994) Ampl/Mixer

Amplificatore G60A; Geloso SA; Milano (ID = 298993) Ampl/Mixer

Amplificatore G60A; Geloso SA; Milano (ID = 299002) Ampl/Mixer
Amplificatore G60A; Geloso SA; Milano (ID = 1297910) Ampl/Mixer Amplificatore G60A; Geloso SA; Milano (ID = 391701) Ampl/Mixer
Use red slider bar for more.
Amplificatore G60A; Geloso SA; Milano (ID = 1297910) Ampl/Mixer

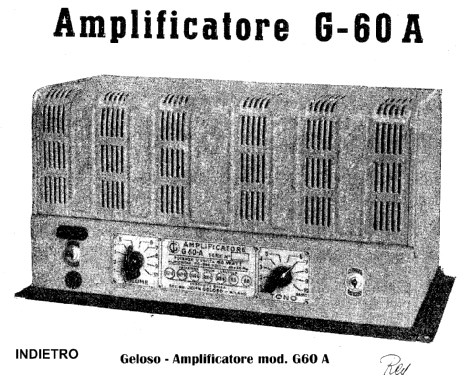

Geloso SA; Milano: Amplificatore G60A [Ampl/Mixer] ID = 1297910 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificatore G60A, Geloso SA; Milano

Country:  Italy
Manufacturer / Brand:  Geloso SA; Milano
Year: 1946 ? Category: Audio Amplifier or -mixer
Valves / Tubes 7: 6J7G 6J7G 6L6G 6L6G 6L6G 83 83
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 - 280 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Amplificatore G60A - Geloso SA; Milano
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 250 x 230 mm / 17.3 x 9.8 x 9.1 inch
Net weight (2.2 lb = 1 kg) 14.6 kg / 32 lb 2.5 oz (32.159 lb)
Mentioned in Bollettino Tecnico Geloso (n. 37/38)

Model page created by a member from I. See "Data change" for further contributors.
