• Year
  • 1946 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84047

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

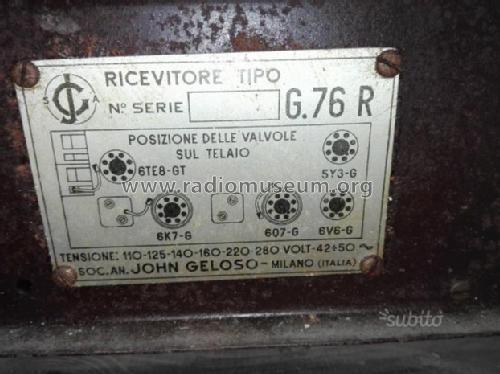

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 140, 160, 220, 280 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

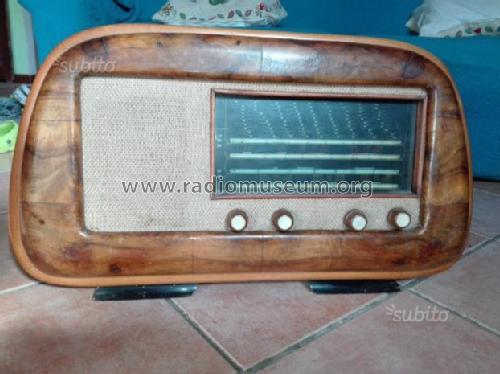

  • Model: G76R - Geloso SA; Milano
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Meter.
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
