• Country
• Italy

• Manufacturer / Brand
• Geloso SA; Milano

• Year
• 1949/1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296353

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7GT 6SK7GT 6SQ7GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-280 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

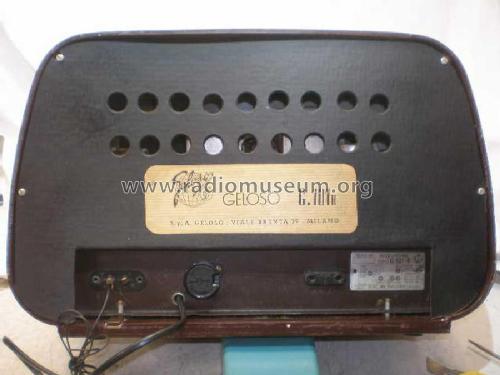

• Model: G 101-S - Geloso SA; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 370 x 250 x 190 mm / 14.6 x 9.8 x 7.5 inch

• Notes

• Apparecchio simile al G101, ma per esportazione. Monta un gruppo AF n°1978, con tre gamme d'onda, OC1, OC2, OM. Presente la presa Fono ma il gruppo non ha la commutazione, quindi su qualsiasi gamma d'onda per ascoltare un disco basta spostare la sintonia dove non si ricevono stazioni.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
