G-4/218
Geloso SA; Milano
- Country
- Italy
- Manufacturer / Brand
- Geloso SA; Milano
- Year
- 1961–1965 ??
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 73260

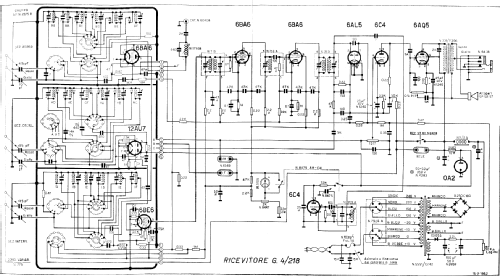

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 467 kHz; 2 AF stage(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: G-4/218 - Geloso SA; Milano
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 516 x 260 x 254 mm / 20.3 x 10.2 x 10 inch
- Notes
- Coverage from 510 to 30500 KHz in six ranges, AM/CW with BFO.
External speaker/headphone output 500Ω.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 695.00 DM
- Source of data
- -- Original prospect or advert
- Mentioned in
- RIM Bastelbuch 1965
- Literature/Schematics (1)
- Funkschau (7/1964, S. 177, 178)
